UID offers a wide range of reliable and cost-effective RFID transponder readers to meet the individual researcher’s needs. UID readers are available for either stationary or mobile applications for convenient and efficient data collection. Our readers are designed to work with all UID encrypted transponders to ensure an accurate and secure read each time. They are fully compatible with all Laboratory Information Management Systems (LIMS) and other software programs for seamless data transfer and computer integration. UID readers are manufactured to the highest quality standards to ensure data integrity and maximize data collection efficiency.
RFID Microchip Readers
URH-1HP Handheld Reader
Description
The URH-1HP Reader is a medium range scanning device designed to read encoded data from all UID implantable microchips, including Temperature Microchips. It’s portable, wireless design is ideal for general laboratory applications where mobility is necessary. The URH-1HP Reader enables automatic data collection by connecting to a computer system, either physically with a USB cable, or wirelessly using Bluetooth connection.
Specifications
- Portable reader
- Compatible with all UC-Series of UID implantable microchips
- Recommended species: rodents (mice, rats, hamsters, rabbits)
- Recommended Routes: SC (all species), IP (mice, rats)
- Microchip programming: NO
- Reads temperature data (UCT-2112 Temperature Microchip): YES
- Connects to PC via USB or Bluetooth (wireless) interface
- HID Keyboard: YES
- Read range: 5.5-7.1cm
- Power: Lithium-ion battery
- Requires a UBC-i2 battery charger
UBS-200L Base Station
Description
The UBS-200L Base Station is a desktop reader for high throughput ID and temperature monitoring processes. This reader connects to a wand which allows a read distance up to 8cm. The Base Station readers connects to a computer via USB cable, and it is compatible with all software systems. The Base Station reader can also be used for programming microchips programming when combined with the Pi Software Provisioning Application.
Specifications
- Desktop, high-power reader
- Compatible with all UC-Series of UID microchips
- Recommended species: mice, rats
- Routes: SC (mice, rats), IP (mice)
- Microchip programming: YES (requires Pi Software Provisioning Application)
- Reads temperature data (UCT-2112 Temperature Microchip): YES
- For use with LF Desktop Reader, Square Wand, or Stick Antenna
- Connects to PC via USB/serial cable
- HID Keyboard: YES??
- Long read range: 4-8cm (depending on microchip size and reader antenna)
- Power: A/C

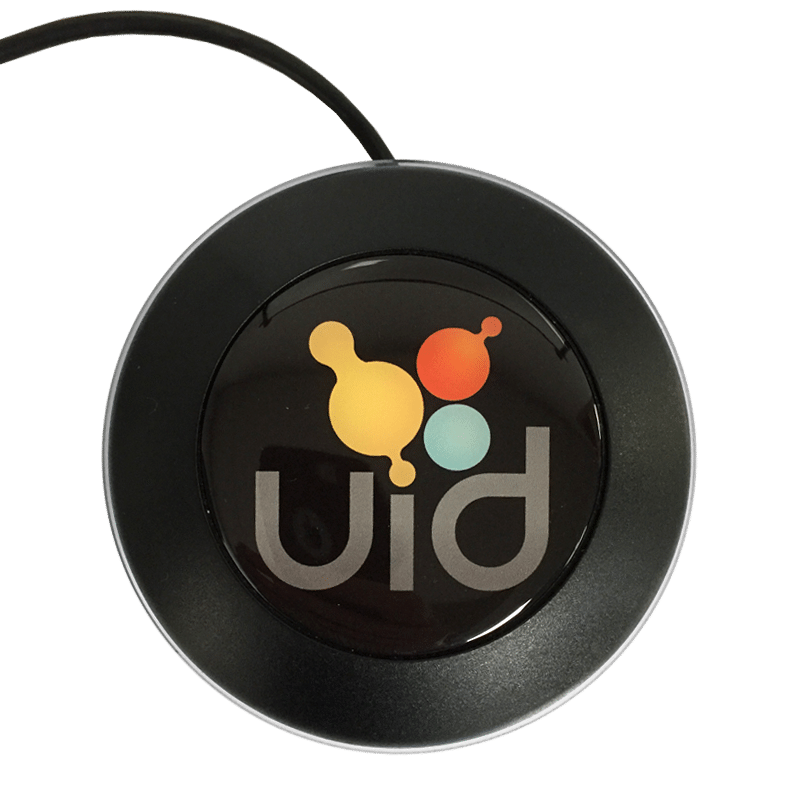

UDT-100L Desktop Reader
Description
The UDT-100L is a low-cost reader for stationary, high-throughput applications. This reader connects directly to a computer via USB cable. You simply pass the mouse or rat over the reader, and the animal ID/temperature information is entered directly into any LIM system or or Excel spread sheet. The UDT-100L Desktop reader has a read range of 3-4 cm, and it is compatible with all UID transponders, including temperature.
Specifications
- Desktop reader
- Compatible with all UC-Series of UID microchips
- Recommended species: mice, rats
- Recommended Routes: SC (mice, rats), IP (mice)
- Microchip programming: NO
- Reads temperature data (UCT-2112 Temperature Microchip): YES
- Connects to PC via USB cable or HID interface
- HID Keyboard: YES
- Read range: 3-4cm
- Size: 110mm diameter x 30mm height
- White LED light indicator
- Power: POE
URH-300HP High Power Reader
Description
The URH-300HP is a high-power reader which is ideal for identification and temperature reading applications in large lab animals, including rabbits, primates, dogs, sheep, swine, and others. This hand held reader is compatible with all UID Laboratory Animal Microchips, and has a long read range of up to 8”. It can also be used for reading through cage bars (i.e., primate cages).
Specifications
- Portable, high-power reader
- Compatible with all UC-Series of UID microchips
- Recommended species: rabbits, dogs, primates, sheep, swine, cattle, and other large species
- Routes: SC (all species), IP (all species)
- Microchip programming: NO
- Reads temperature data (UCT-2112 Temperature Microchip): YES
- Connects to PC via USB or Bluetooth (wireless) interface
- HID Keyboard: YES
- Long read range: 6-8”
- Power: 7.2V Lithium-ion rechargeable batter
- Stores up to 2,000 records
- Communication interface: RS 232 with USB and optional Bluetooth
UBC-600 Base Console
Description
The Base Console Reader (UBC-600) is a high-power, industrial reader designed to read encoded data from all UID implantable microchips. This reader is designed for mounting under a benchtop to maximize counter space. The Console Reader provides a read distance from 5 to 8 cm with the use of an attachable antenna wand. It connects to a computer via USB cable for direct data input into any LIM system.
Specifications
- Desktop, high-power reader
- Designed for mounting under a table or bench for space efficiency
- Compatible with all UC-Series of UID microchips
- Recommended species: mice, rats
- Routes: SC (mice, rats), IP (mice)
- Microchip programming: YES (requires Pi Software Provisioning Application)
- Reads temperature data (UCT-2112 Temperature Microchip): YES
- For use with LF Desktop Reader, Square Wand, or Stick Antenna
- Connects to PC via USB cable
- HID Keyboard: YES
- Long read range: 5-8cm (depending on microchip size and reader antenna)
- Power: A/C
- Waterproof (IP67 rating)
URC-500 High Power Console
Description
The UID High Power Console Reader (URC-500) provides long read range up to 8″ depending on the choice of antenna used (handheld wands, primate tunnels, or 6”x6” plates). It can connect to up to 4 antennae plates for continuous location and temperature monitoring.
Specifications
- Application: Continuous location and temperature tracking
- Desktop, high-power reader
- Designed for mounting under a table or bench for space efficiency
- Compatible with all UC-Series of UID microchips
- Recommended species: mice, rats, rabbits, primates, other
- Reader dimensions: 75” x 4.5” x 3.25”
- Reads temperature data (UCT-2112 Temperature Microchip): YES
- Antenna options: Circle wand, 6”x6” Square Plate, primate tunnel (up to 3’x4’ in size)
- Long read range: 8”-24” (depending on microchip size and antenna)
- Power: 12V
- Waterproof (IP67 rating)
Light Bar Reader
Description
The Microchip Light Bar Reader (UBC-600-LB) is ideal for quick and simple identification of animals in a group via color coding. The color code is programmed directly into the implanted microchip. When the animal is scanned, the light bar lights up according to the programmed color. If connected to a PC, the animal ID and color code will show on the screen, and the light bar will turn on the corresponding color light.
Specifications
- Desktop, high-power reader
- Designed for mounting under a table or bench for space efficiency
- Compatible with all UC-Series of UID microchips
- Recommended species: mice, rats, hamsters
- Routes: SC (mice, rats), IP (mice)
- Microchip programming: YES (requires Pi Software Provisioning Application)
- Reads temperature data (UCT-2112 Temperature Microchip): YES
- For use with LF Desktop Reader, Square Wand, or Stick Antenna
- Connects to PC via USB cable
- HID Keyboard: YES
- Long read range: 5-9’ (depending on microchip size and reader antenna)
- Power: A/C
- Waterproof (IP67 rating)

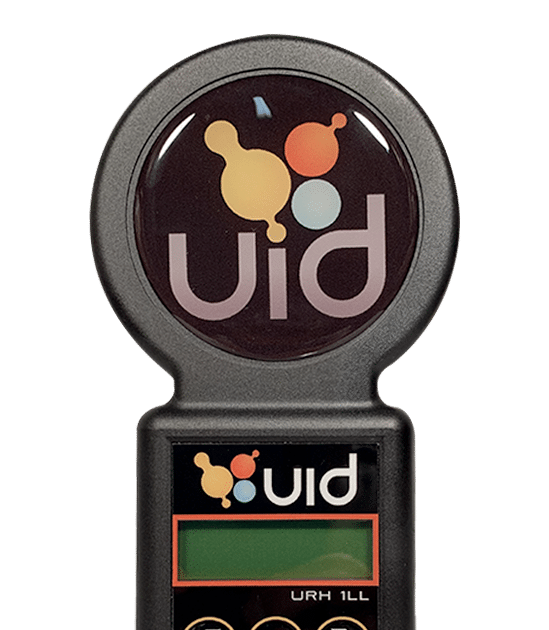

URH-1L Handheld Reader
Description
The URH-1L Reader is a medium range scanning device designed to read encoded data from all UID implantable microchips, including Temperature. It’s portable, wireless design is ideal for general laboratory applications where mobility is necessary. The URH-1L Reader enables automatic data collection by connecting to a computer system, either physically with a USB cable, or wirelessly using Bluetooth.
Specifications
- Portable reader
- Compatible with all UC-Series of UID implantable microchips
- Recommended species: rodents (mice, rats, hamsters, rabbits)
- Recommended Routes: SC (all species), IP (mice, rats)
- Microchip programming: NO
- Reads temperature data (UCT-2112 Temperature Microchip): YES
- Connects to PC via USB or Bluetooth (wireless) interface
- HID Keyboard: YES
- Medium Read range: 4-5cm
- Power: Lithium-ion battery (AC option for continuous power)
- Frequency: 134.2 kHz
- Requires a UBC-i2 battery charger
Reader Accessories
Battery Charger
Description
Li-Ion Battery Charger for the URH-1HP, URH-1L, URH-1HP-ISO and URH-1LL-ISO readers. Two versions available: 2-channel and 4-channel battery charger.
Specifications
Two versions available:
- 2-channel – 2 batteries
- 4-channel – 4 batteries
12” Stick Antenna
Description
12″ Low Frequency Stick Antenna. For use with the RFID Reader Base Station and UAC-2M antenna cable to read all UID microchips.
Specifications
- Compatible with all UID microchips
- For use with UBS-200 Base Station or UBC-600 Base Console
- Recommended species: mice, rats
- Routes: SC (mice, rats), IP (mice)
- Reads temperature data: YES
- Read range: 4-8cm (depending on microchip size and reader antenna
Square Antenna Wand
Description
Low Frequency Antenna Wand (4.5″ Square) for use with the RFID Reader Base Station and UAC-2M antenna cable to read all UID microchips.
Specifications
- Compatible with all UID microchips
- For use with UBS-200 Base Station or UBC-600 Base Console
- Recommended species: mice, rats
- Routes: SC (mice, rats), IP (mice)
- Reads temperature data: YES
- Read range: 4-8cm (depending on microchip size and reader antenna)
Bluetooth Dongle
Description
Add wireless streaming functionality to your RFID reader and transmit microchip data directly to your computer without cables with the UBT-500 Bluetooth Dongle.
Specifications
- Compatible with URH-1, URH-1HP, and URH-300HP Handheld Readers
- Designed for Windows
- Converts the reader Bluetooth signal to a Virtual COM port
- Compatible with all UC-Series of UID microchips
- Transmission distance up to 300 ft. in open space
- Dimensions: 3.25″ x 2″ x 0.5″ with 8″ USB cable

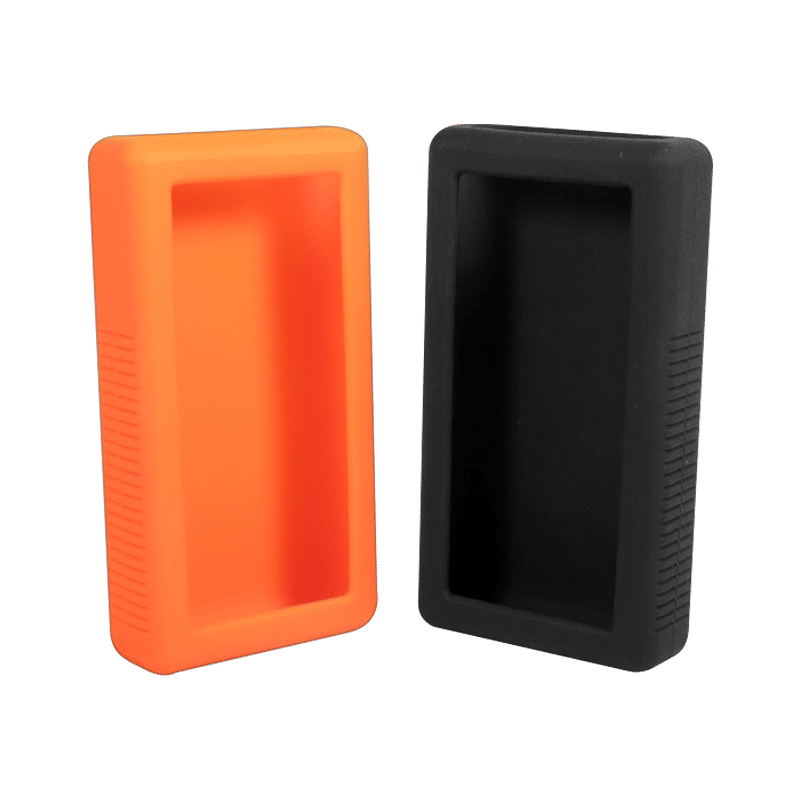

Handheld Reader Case
Description
Protect to your portable URH-1HP Reader from accidental drops. This case fits snugly over the reader and provides a comfortable grip for easy and convenient use.
Specifications
- Material: silicone
- Available colors: black, red, blue, and orange
